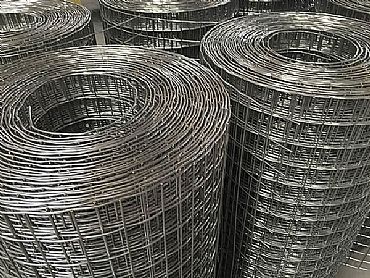

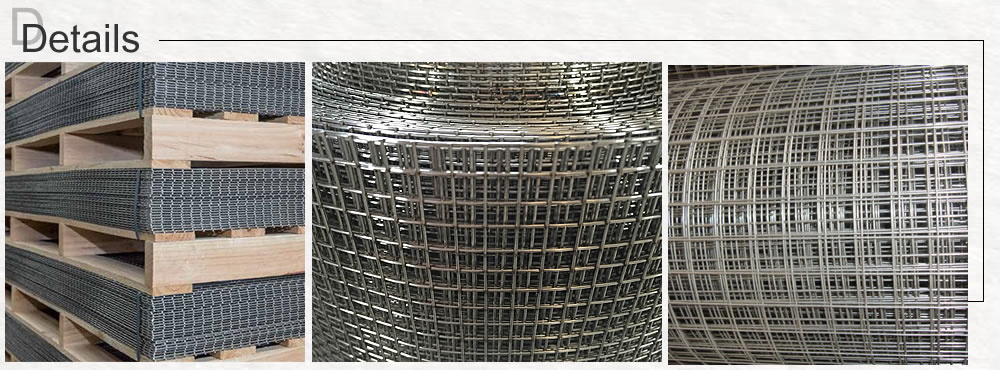

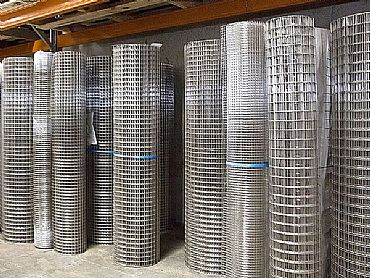

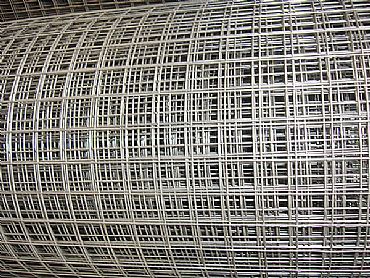

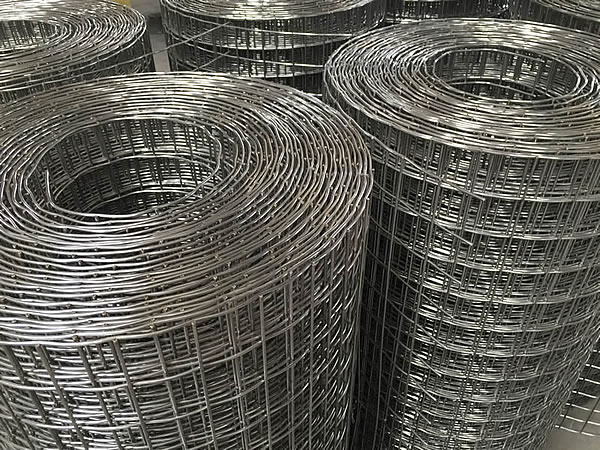

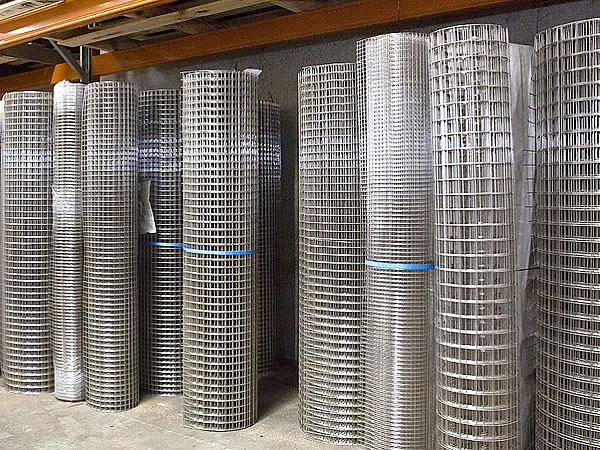

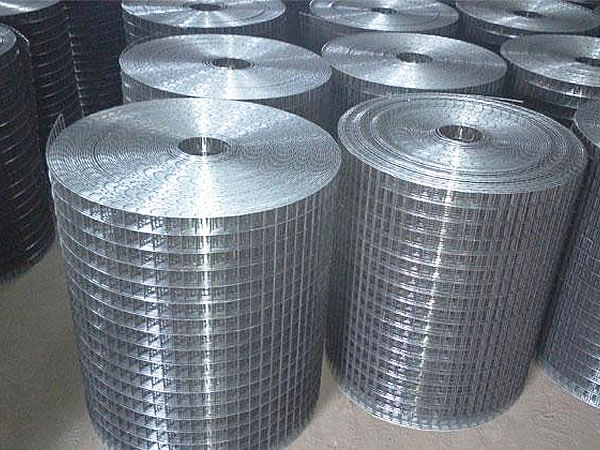

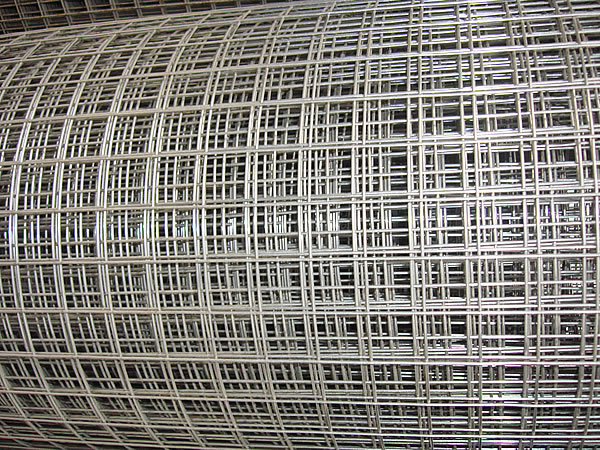

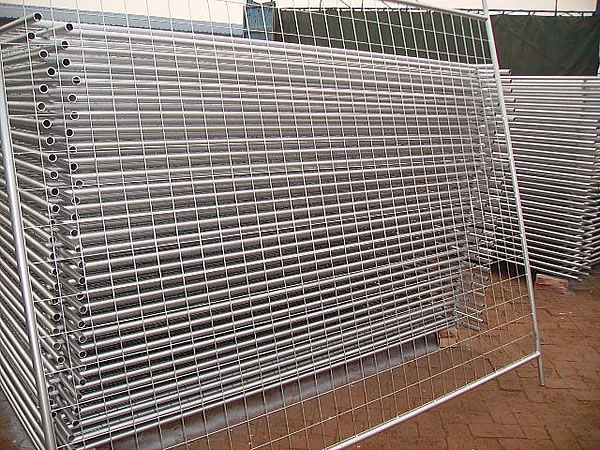

Stainless Steel Welded Wire Meshis made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
Feature: corrosion resistance, aging resistance, sunshine resistance and weather resistance.
Forms of corrosion resistance: Electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC powder coated.
Features:
1. Visual and convenient management
2. The web plate of layer board, bearing capacity is strong, easy to clean storage cargo
3. The installation of web plate layer plate can be used for 1-3 t goods stored
4. Net chip layer board installation does not require any tools, can be placed between the beam directly
5. Artificial deposit, do not need pallet storage
6. Net chip layer board is designed to prevent items dropped down from above
7. Install network chip layer board can make the size of the tray diverse rendering on the shelf.
8. Use strong touch welding wire and become, in at the bottom of the u-shaped channel steel weld reinforcement, structure more solid;
9. Used with heavy shelves, cost savings, strong.
1.Materials: 201, 202, 304, 304L, 316, 316L stainless steel wire, etc.
2..Wire Diameter: 0.5mm-2.0mm, etc. Also available as your requirements within our range.
3.Width of rolls: 0.5m-2.0m,
4.Length of rolls generally: 20m/25m/30m. or as your requirements.
5.Aperture: 1/4", 1/2",3/4",3/8",5/8", 1", 1.5", 2", 3", 4" 5", 6",etc. Customers' requirements are available within our range.
6.Applications: We can use it as building material in construction. Besides, stainless steel welded wire mesh can also be used as welded wire mesh fence in gardens, zoos, playgrounds, etc. It's widely used in the industry, agriculture, construction, transport and mining such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, and so on.
| Mesh Size | Stainless steel welded wire mesh in roll | |
| Wire diameter | Width of roll(feet) | |
| 1/4’’×1/4’’ | BWG23 | 2-7 |
| 3/8’’×3/8’’ | BWG19 20 21 22 | 2-7 |
| 1/2’’×1/2’’ | BWG16 17 18 19 20 21 22 23 24 | 2-7 |
| 3/4’’×3/4’’ | BWG16 17 18 19 20 21 22 | 2-7 |
| 1’’×1/2’ | BWG16 17 18 19 | 2-7 |
| 1’’×1’ | BWG14 15 16 17 18 19 20 21 | 2-7 |
| 1’’×2’’ | BWG14 15 16 | 2-7 |
| 2’’×2’’ | BWG14 15 16 18 | 2-7 |
| Mesh Size | Stainless steel welded wire mesh panels | |
| Wire diameter | Width of panel(feet) | |
| 2’’×3’’ | BWG8 10 12 | 2-8.2 |
| 2’’×4’’ | BWG6 8 11 12 | 2-8.2 |
| 3’’×3’’ | BWG6 8 10 11 | 2-8.2 |
| 4’’×4’’ | BWG3 4 5 6 8 9 10 | 2-8.2 |
| 4’’×6’’ | BWG3 4 5 6 8 9 10 | 2-8.2 |
| 6’’×6’’ | BWG2 4 6 7 8 9 | 2-8.2 |
| Material, wire diameter, mesh size,length and width, can be customized as each client’s requirements | ||
