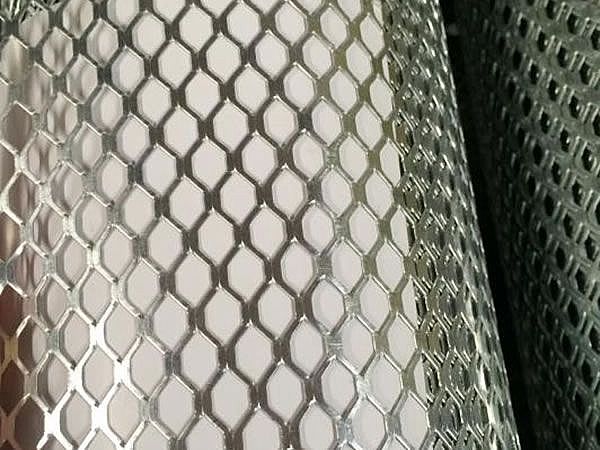

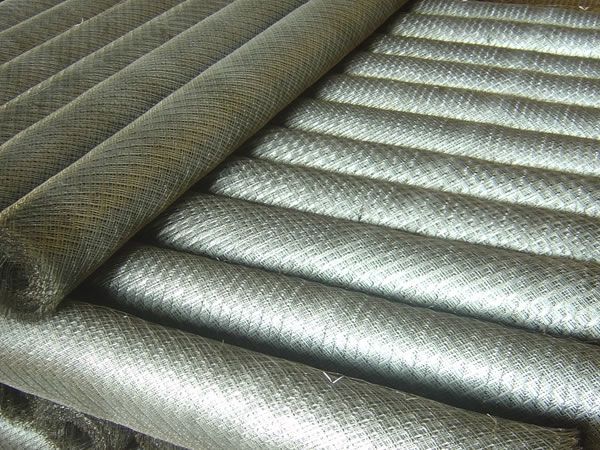

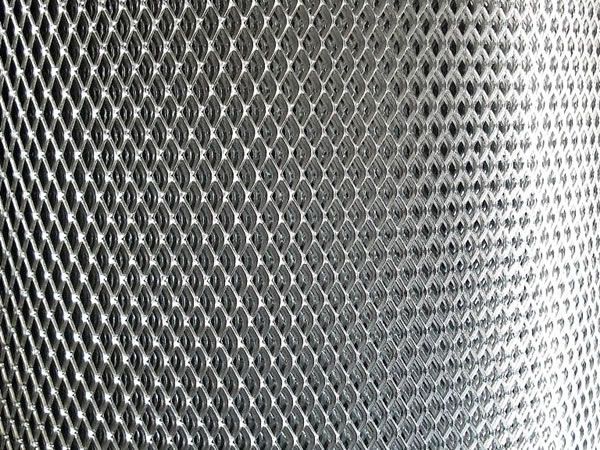

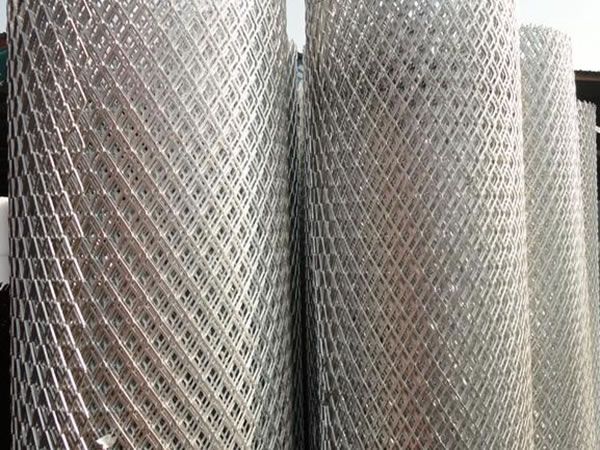

Galvanized Expanded Metal Mesh is a versatile and economical product. Made from a sheet of metal uniformly slit and stretched, forming diamond-shaped openings in the sheet.
Expanded wire mesh is a one piece construction that won’t unravel and under normal circumstances and will hold its shape for many years. The strands and bonds of the diamond-shaped trusses add strength and rigidity.
Expanded wire mesh comes in a standard (raised) or flattened diamond pattern in a variety of gauges, opening sizes, materials and sheet sizes.
Expanded wire mesh is typically used for screening, ventilating or security as a guard. The openings permit passage of light, air, heat and sound, and sheet is lightweight and easy to fabricate and form. Decorative patterns have the same properties and are used aesthetically. Decorative patterns may be found in applications like retail shelving, signage, partitions, ceiling tiles, and more.
Material: low carbon steel, galvanized plate, stainless steel plate, brass plate, aluminum plate,titanium plate, nickel plate, almg alloy plate.
Hole shape: diamond, square, round, triangle and scale -shaped opening.
Weaving: punched and stretched, sturdy and durable with elegant appearance.
Metal Surface: PVC coated, sprayed, plastic coated, hot dipped galvanized, electro galvanized, etc.

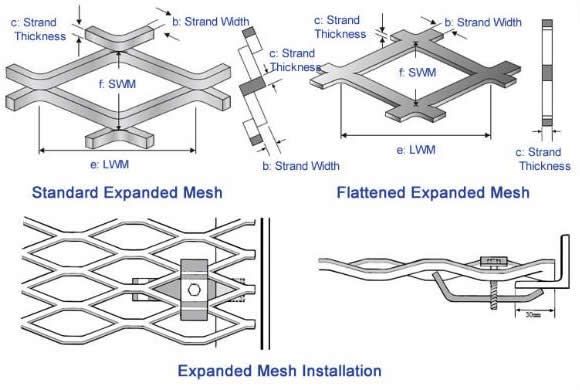

Specification:
SWM:Center from node tonode of thelength of the short diagonal.
LWM:Center from node tonode of thelength of the long diagonal.
SWD:The length of the short diagonal of the hole.
LWD:The length of the long diagonal of the hole.
Strand:Make a silk stem length of the metal plate used.
Bond:Two-node connections.
Specifications of Expanded Metal Mesh
| Sheet Thickness | Opening in width(mm) SWD | Opening in length(mm) LWD | Strand width (mm) | Roll width (m) | Roll length (m) | Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |

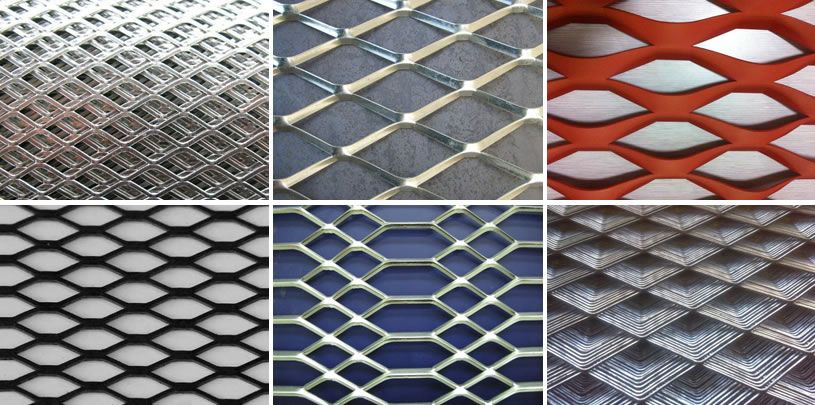

Expanded Metal Mesh Variety

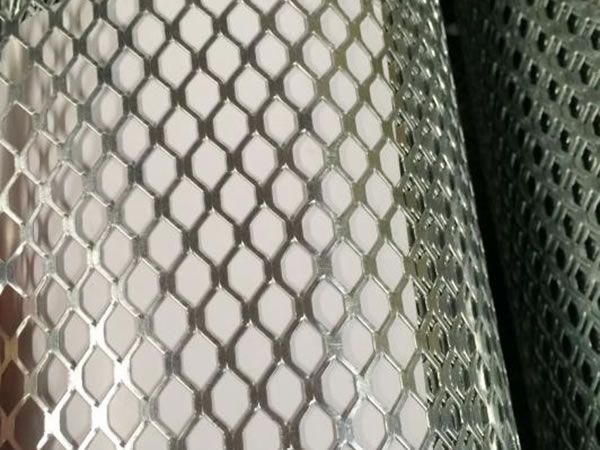

small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.

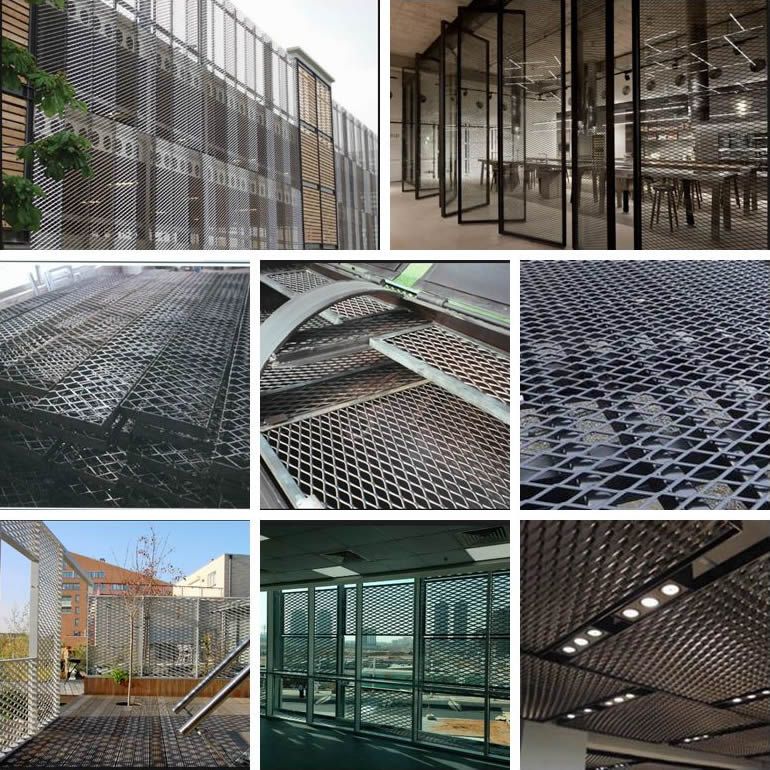

Expanded Metal Mesh Application
Flooring,Ventilation,Architectural,Railing,Filtration,Decorative mesh,Wall facade and cladding,Building ceiling,Sun screen,Interior design,etc.
Expanded Metal Mesh Use
Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.

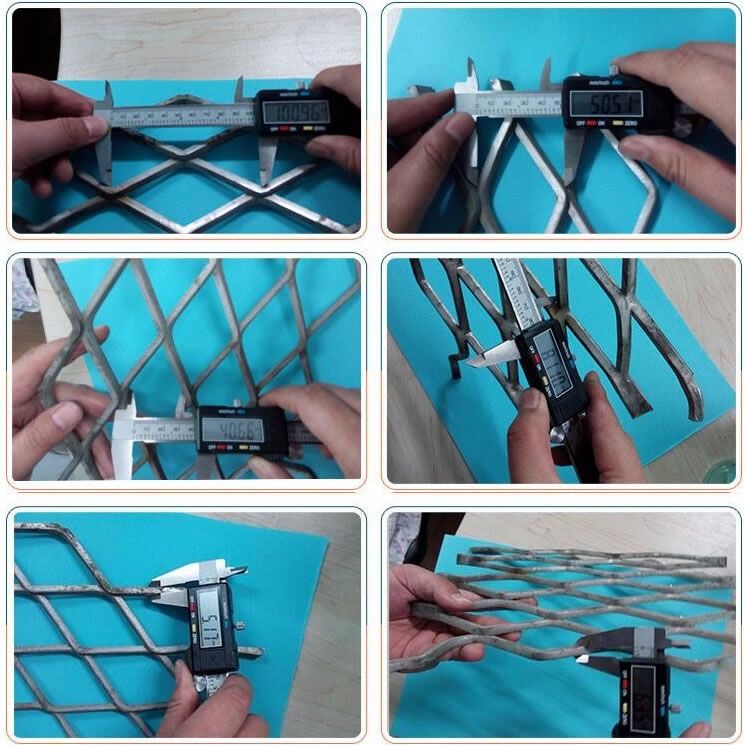

Quality inspections before shipment
