Material:low carbon steel wire, black iron wire,electro galvanized wire, hot dipped galvanized wire,stainless steel wire, aluminum wire
Width: 0.5m-2.0m
roll length: 15m,20m,25m,30m or as clients’ requirements
Surface treatment:
Hot dipped galvanized before welding
Hot dipped galvanized after welding
Electro galvanized before welding
Electro galvanized after welding
PVC coating after welding
Features:
Galvanized welded wire mesh has the features of excellent anti-corrosion resistance, acid resistance, anti-alkali property, oxidation-resistance and excellent flexibility.
Due to its even and bright luster coating, galvanized welded iron wire mesh looks attractive and beautiful.
The finished galvanized welded wire mesh offers flat and uniform surface, firm structure and good integrity.
Applications:
It is widely used in the industry, agriculture, aquaculture, building, communication and transportation and mineral extraction, etc. It also finds application in shields on machinery or equipment, wire fence for livestock or flowers and trees, fence for protecting windows, fence for pathways, poultry cage, basket for holding eggs, foodstuff basket, paper basket or decorative fields in home or office.
Standard welded wire mesh | ||||
Opening size | Wire diameter(BWG) | |||
In inch | In mm | |||
1/4''×1/4'' | 6.4mm×6.4mm | 22 23 24 | ||
3/8"×3/8" | 10.6mm×10.6mm | 19 20 21 22 | ||
1/2"×1/2" | 12.7mm×12.7mm | 16 17 18 19 20 21 22 23 | ||
5/8"×5/8" | 16mm×16mm | 18 19 20 21 | ||
3/4"×3/4" | 19.1mm×19.1mm | 16 17 18 19 20 21 | ||
1"× 1/2" | 25.4mm×12.7mm | 16 17 18 19 20 21 | ||
1-1/2"×1-1/2" | 38mm×38mm | 14 15 16 17 18 19 | ||
1"×2" | 25.4mm×50.8mm | 14 15 16 | ||
2"×2" | 50.8mm×50.8mm | 12 13 14 15 16 | ||

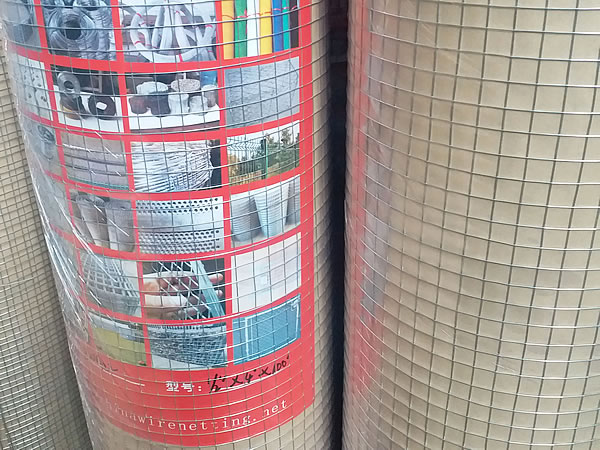

Technical note: Standard roll length:20m/25m/30m width:0.5m-2.0m width:0.5m-2.0m Special size available at request Packing:waterproof paper inside,plastic film outside or as client’s requirements. | ||||
Galvanized fencing mesh | ||||
Opening size | Wire diameter(mm) | |||
In inch | In mm | |||
2"'×3" | 50mm×75mm | 2.0mm 2.5mm 1.65mm | ||
3"×3" | 75mm×75mm | 2.67mm 2.41mm 2.11mm 1.83mm1.65mm | ||
2"'×4" | 50mm×100mm | 2.11mm 2.5mm | ||
4"'×4" | 100mm×100mm | 2.0mm 2.5mm | ||
Technical note: Standard roll length:20m/25m/30m width:0.5m-2.0m width:0.5m-2.0m Special size available at request Packing:waterproof paper inside,plastic film outside or as client’s requirements. |
